Charging. The smart way.

SMART CONNECT KNX e-charge II

Electromobility in KNX Smart Home

With the SMART CONNECT KNX e-charge II, the risk-free, easy integration of charging points from a wide range of manufacturers into the KNX system succeeds.

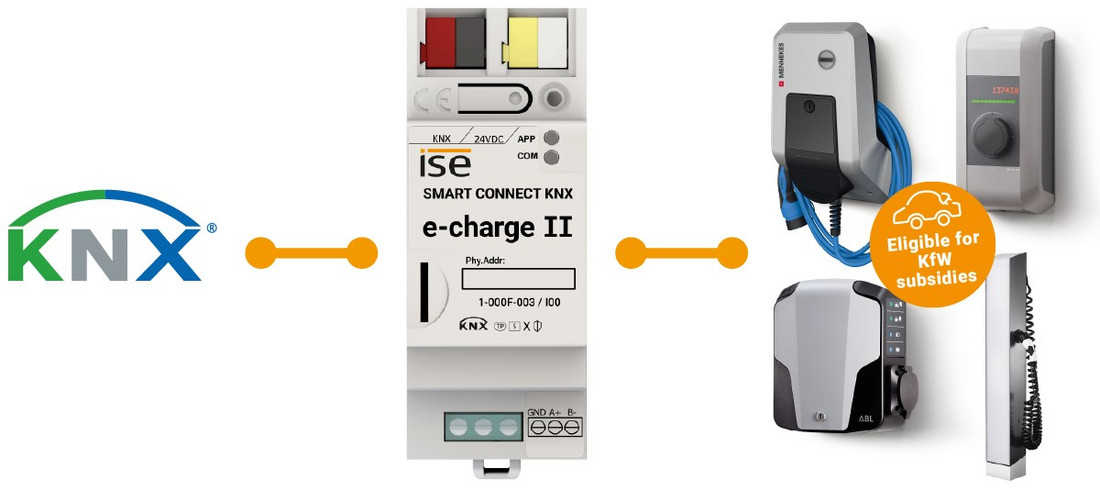

Infographic SMART CONNECT KNX e-charge II

SmartHome Deutschland Award 2024

WOW! Our SMART CONNECT KNX e-charge II has won again! This time the 1st place in the category "Best Product" from the "SmartHome Deutschland".

"It was very clear to the jury this year that the smart home sector has finally emerged from its niche existence and is playing a decisive role in tackling current problems. This includes the heating transition as well as charging management for electric cars and demographic change. Smart home technologies have become an integral part of current system solutions in many areas," emphasised jury chair Professor Birgit Wilkes at the award ceremony.

Different manufacturers and mixed operation

Would you like to use charging points from different manufacturers? Up to five charging points from different manufacturers can be integrated in mixed operation. This offers maximum flexibility in terms of different brands and models.

Dynamic load management (DLM)

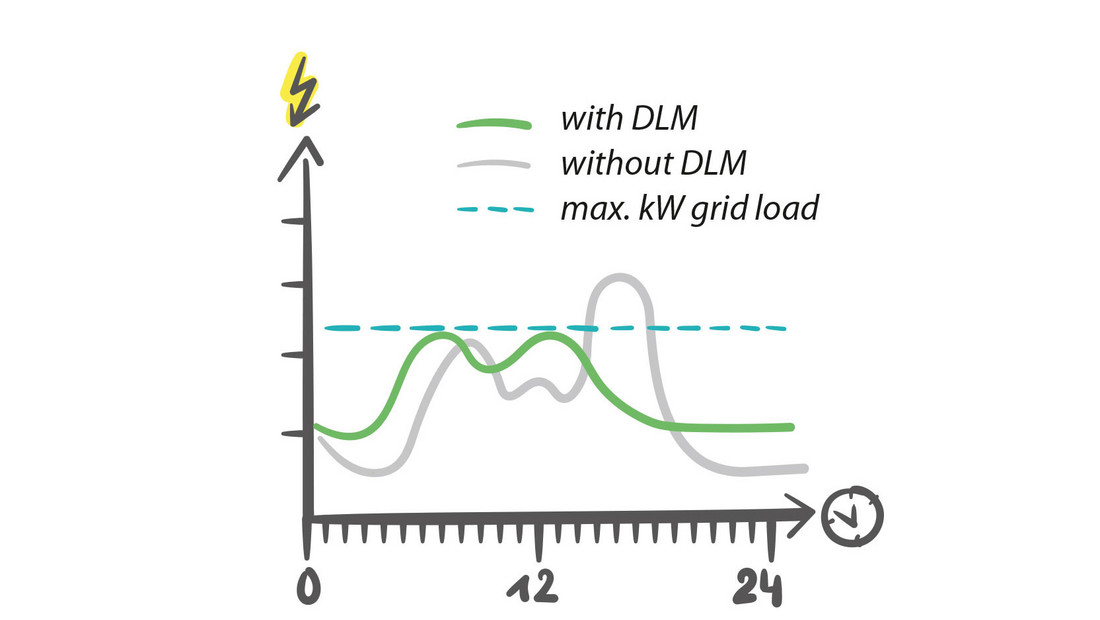

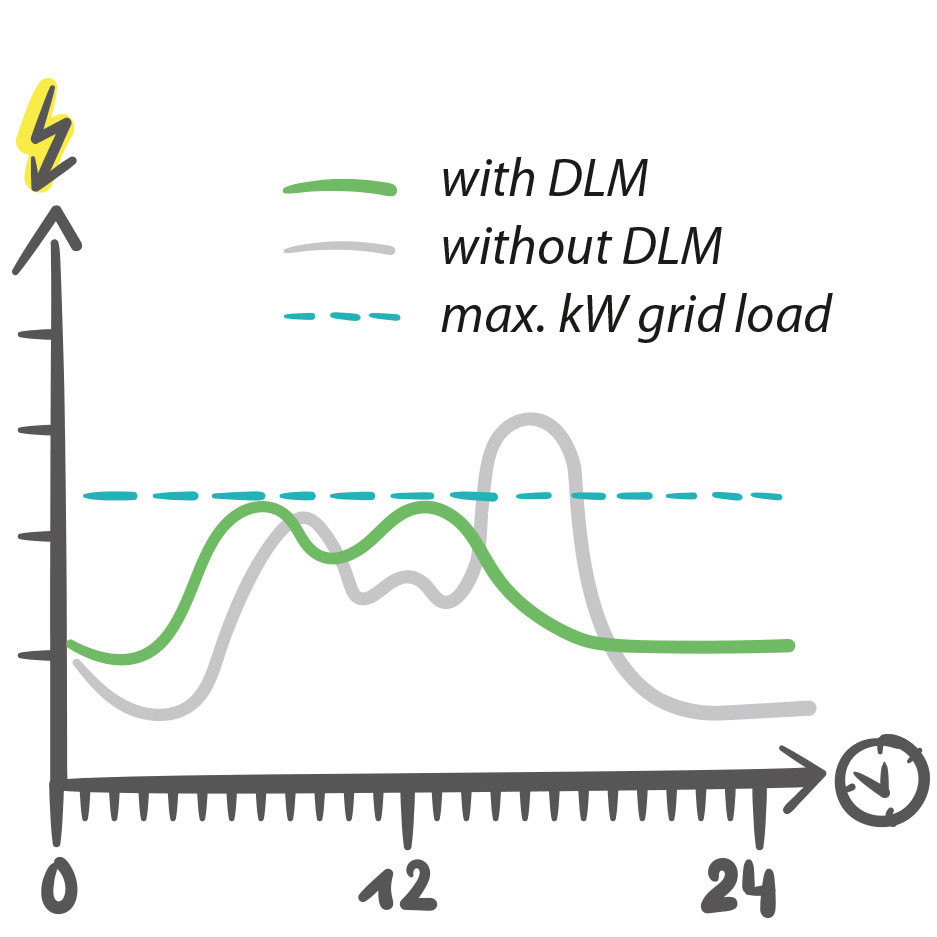

Casserole in the oven? Laundry in the dryer? And charge the car at the same time? It’s all possible thanks to dynamic load management (DLM)! Despite high power-consuming appliances, charging is now also possible even with small household connections.

Modbus inside with just two HPs in the control cabinet

SMART CONNECT KNX e-charge II unites the required connections in one gateway! Thanks to the integrated Modbus RTU/ASCII connection, there is no need for an additional USB adapter. This saves space in the control cabinet, since only two HPs are required.

Configuration completely via the ETS

The gateway enables the comprehensive integration of charging points in your KNX system – fully configurable in the ETS. No additional software is required and all data is clearly arranged in one system.

Ecological, economical or individual charging

Control charging via KNX! Use advantageous electricity pricing and electricity generated by your renewable energy source to charge your vehicle when it is convenient for you. Or individually by pressing a button.

Informed charging

You want to know if and how many cars are connected or being charged at your charging stations, but you don’t want to go to your garage? Be informed comfortably via KNX – where you want to and the way you want to!

Strong brand and models

Already in the SMART CONNECT KNX e-charge II integrated manufacturers:

Are you a manufacturer of charging points and would like to be integrated as well? Please feel free to contact us!

+ POINTS

Dynamic load management (DLM)
Static load management (SLM)
Support for 5 charging points
Different manufacturers and mixed operation
Connection via IP or RS485 (Modbus)
Configuration via ETS
2 HPs in control cabinet without additional adapter

Private use and use in companies or hotels

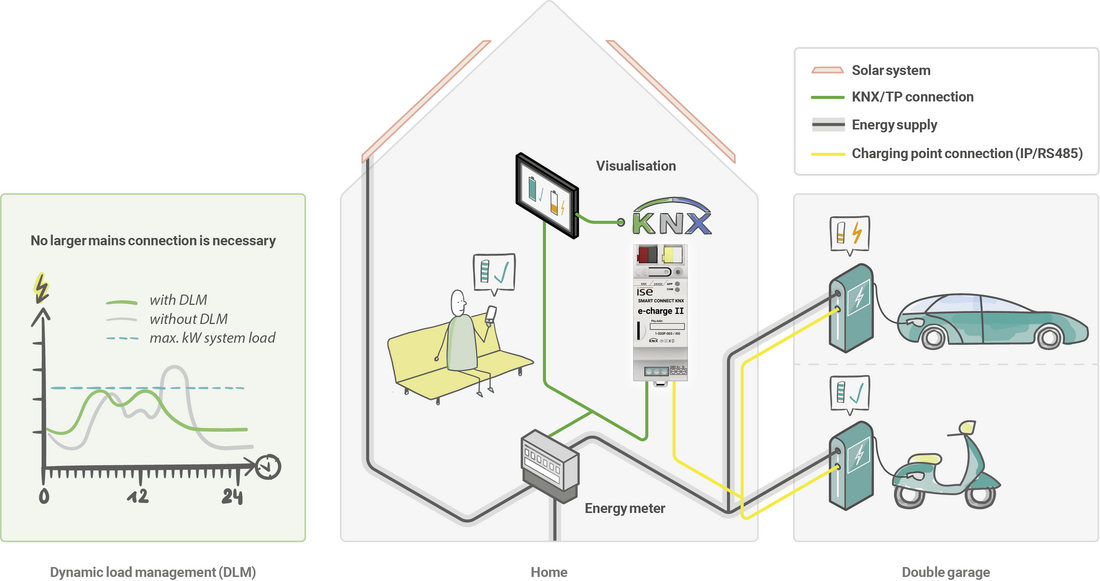

Energy consumption often presents a problem. A mains connection that is too small and several energy-consuming appliances in the household at once lead to long charging times with a low charging current. The energy supplier has to install a stronger supply line, which comes with high investment costs. With the SMART CONNECT KNX e-charge II and the use of DLM smart home technology, charging is now possible even with small household connections. The available electricity is evenly distributed to all charging points, preventing the household connection from becoming overloaded.

In companies or hotels, several charging points need to be operated at once. The SMART CONNECT KNX e-charge II allows up to five charging points per gateway. With the SMART CONNECT KNX e-charge II and a smart meter, DLM enables high power-consuming appliances to be taken into account while avoiding load peaks. The prioritisation of one charging point offers additional benefits for a wide range of use cases.

New firmware, new possibilities

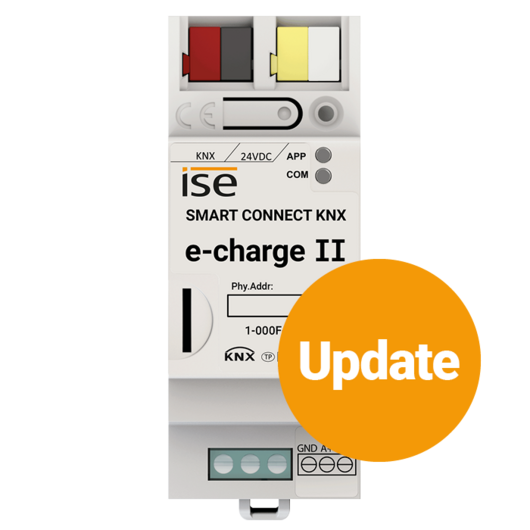

Version 1.4 for the SMART CONNECT KNX e-charge II available!

Even more diversity! With the new update V1.4 the SMART CONNECT KNX e-charge II supports the integration of additional manufacturers of charging points. From now on, the following charging points can also be integrated:

Eve Double Pro-line from Alfen
connect.home from Heidelberg Amperfied
AMTRON® Compact 2.0s from MENNEKES
i-CHARGE CION Pro from Schrack Technik

Another new feature is the static load management.

Your charging point is not yet included? Please feel free to contact us. We are constantly working on integrating more manufacturers to offer a wide variety. Click here to share your request with us: Send E-MAIL

The device can be updated using the integrated function on the device web page. The update is free of charge. You can find the new product database entry in the download section of this page.

For more descriptions of the new features and the extended license terms see the product manual.

Features

Integration of five charging points per device
Dynamic load management (DLM)
Static load management (SLM)
Simultaneous operation of charging points from different manufacturers (mixed operation)
Prioritisation of one charging point

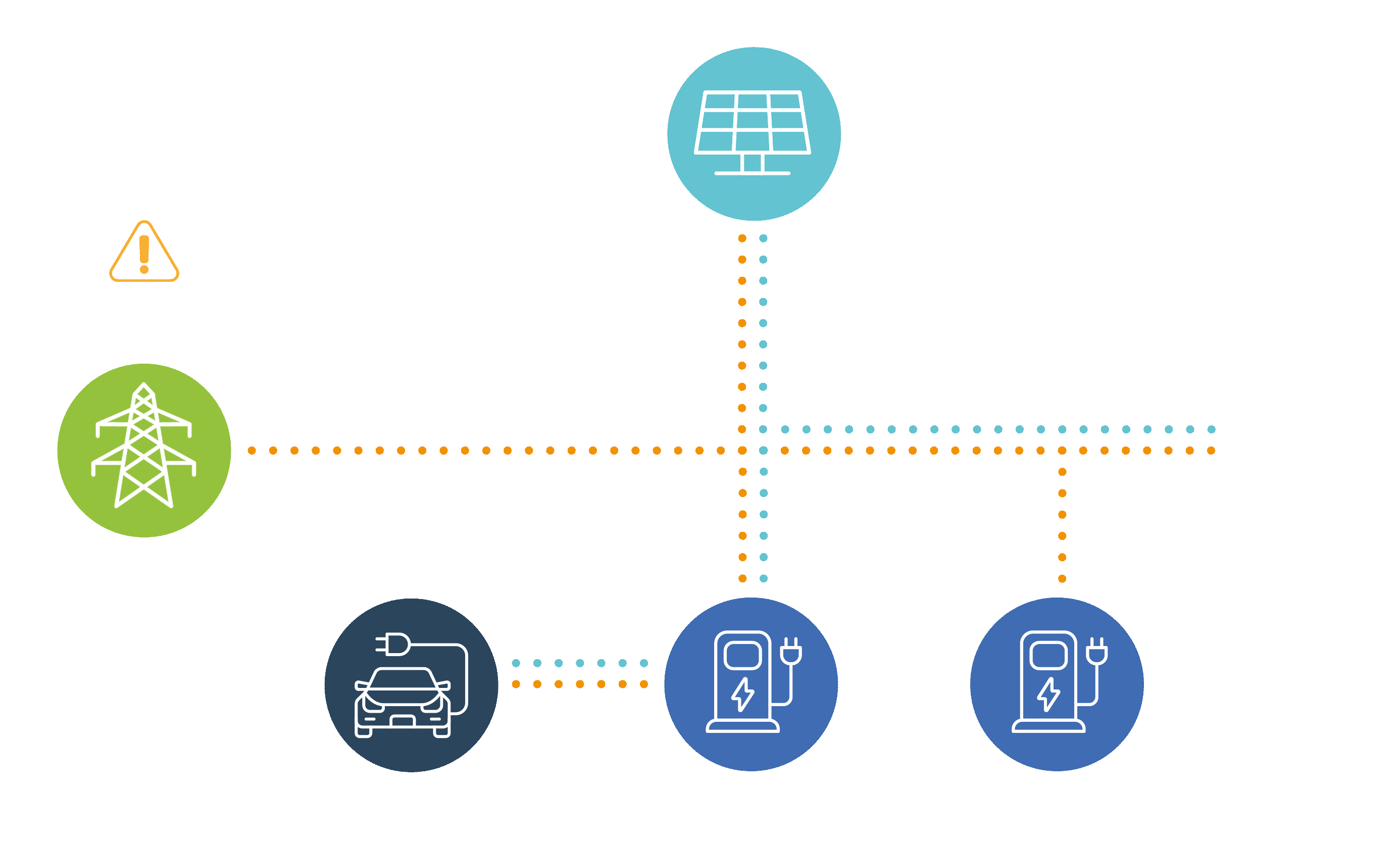

Grid-supporting control by grid operator
KNX group objects Charging: Charging point status, Connected, Charging, Charging complete*, Interrupt*, Start/Stop*, Unlock*
KNX group objects Charging Current, Power, Energy*, Energy consumption last charge*

KNX group objects Communication ID (EVCCID)*, Charging point internal temperature*, Temperature warning*, RFID tag*, Serial number*, Charging point firmware version*
KNX group objects Fault
Support for external electricity meters (Iskra, Phoenix, generic) at charging points which are not equipped with an integrated electricity meter
KNX Secure
Completely configurable in ETS
Extensions via firmware updates

* Manufacturer-dependent

Technical data

Rated voltage:	DC 24 V to 30 V
Power consumption:	2.3 W
IP communication:	Ethernet 10/100 BaseT
KNX communication:	KNX/TP, S-Mode
KNX medium:	TP1-256
Connections:	2x RJ45 (integrated switch)
	Connection and branching terminals for KNX and 24 V
	RS485: Screw terminal, 3-pin (GND, A+, B-)
Ambient temperature:	0°C to +45°C
Dimensions:	2 HP (DRA plus)

Note:
Supply via external DC 24 V
For ETS 5.7.5 or higher

Supported charging points

Manufacturer	Model/Type	Note	Modbus TCP	Modbus (RS485)
ABB	EVLunic Pro S	from v3.10.16	•
	EVLunic Pro M	from v1.11	•
	Terra AC	from v1.5.2, baud rate 57600 required		•
ABL	eMH1 basic	Type 1W2208 (22kW)		•
	eMH1	Type 1W2201 (22kW)		•
		Type 1W1121 (charging socket)		•
		Type 1W2221 (charging socket)		•
Alfen	Eve Single S-Line	Important: Requires Alfen software option "Load Balancing Active"	•
	Eve Single Pro-Line	Important: Requires Alfen software option "Load Balancing Active"	•
	Eve Double Pro-line	Important: Requires Alfen software option "Load Balancing Active"	•
ebee	Berlin	from v5.12	•
ewe go (KEBA)	Wallbox Smart light	from v3.10.16	•
	Wallbox Smart	from v1.11	•
Heidelberg Amperfied	Energy Control	From Modbus register version 1.0.8		•
	connect.home		•
KEBA	KeContact P30 c-series	from v3.10.16	•
	KeContact P30 x-series	from v1.11	•
MENNEKES	AMTRON® Charge Control 11	from v5.12	•
	AMTRON® Charge Control 11 C2	from v5.12	•
	AMTRON® Professional	from v5.12	•
	AMTRON® Professional PnC	from v5.12	•
	AMTRON® Professional+	from v5.12	•
	AMTRON® Professional+ PnC	from v5.12	•
	AMEDIO Professional	from v5.12	•
	AMEDIO Professional+	from v5.12	•
	AMEDIO Professional PnC	from v5.12	•
	AMEDIO Professional+ PnC	from v5.12	•
	AMEDIO Professional PnC with shutter	from v5.12	•
	AMEDIO Professional PnC with shutter	from v5.12	•
	AMTRON® Premium C2		•
	AMTRON® Premium E/R T2		•
	AMTRON® Xtra C2		•
	AMTRON® Xtra E/R T2		•
	AMTRON® Compact 2.0s			•
Schneider Electric	EVlink Wallbox G4 Smart	from v3.4.0.3	•
Schrack Technik	i-CHARGE CION Home	RFID information only from controller FW2.3		•
	i-CHARGE CION Semipublic	RFID information only from controller FW2.3		•
	i-CHARGE CION Pro	from v5.20	•
STÖHR	Design Tower	only RTU		•
	Design Line	only RTU		•
	Base Line	only RTU		•

NOTE: MORE CHARGING POINTS ARE IN PROGRESS! CONTACT US!
Further charging points will be supported with each firmware update! Do you have a favourite charging point? Click here to tell us about your request: Send E-MAIL

Downloads

Installation Guide

Product Manual

Status 10.05.2023

ETS Product database entry

Version 1.6

Firmware SMART CONNECT KNX e-charge II

Installation file version 1.4

Tender text (.docx)

Tender text (.txt)

Data Sheet

Product brochure

Flyer Implementation examples

Individual solution
