Vaillant feels comfortable with KNX.

SMART CONNECT KNX Vaillant

Intelligent heating control via KNX

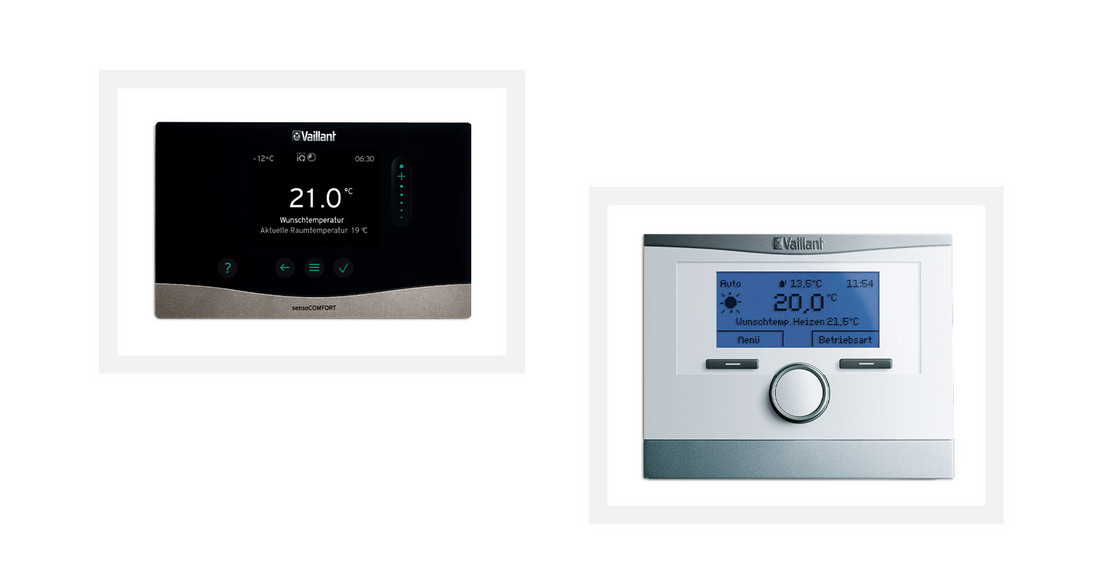

Together with the system controllers sensoCOMFORT or multiMATIC, the SMART CONNECT KNX Vaillant offers integration between the Vaillant system and KNX.

Switch your heating system to "standby mode"

This allows you to reduce the room temperature setpoint values in all rooms (if desired) and minimise heating. Do you wish to be able to react to short-term changes in use quickly and easily (longer than usual periods of absence, visits by friends, parties etc.)? With the SMART CONNECT KNX Vaillant, the times and setpoint values for heating and hot water can be changed temporarily or you can adjust ventilation control (especially through ventilation boosting) to your current requirements. 1

Informed in detail

Conveniently obtain key information directly from your heating system. Whether you are on the sofa or looking at the panel, you can read important data such as the hot water temperature, the circulation pump status or the minimum setpoint flow temperature for cooling mode quickly and clearly on your KNX visualisation display.

Controlling heating as needed

Effective immediately, times and setpoint values for heating and hot water can be easily and quickly entered into the visualisation or any other operating device. This saves energy, as the system only works when it's needed.

Automatic ventilation

The ventilation system is started automatically after a meeting, e.g. after the last person has left the room. In this way, the following meeting can begin in a pleasant climate.

A mode for long evenings

The night mode of the heating system can, for example, easily be set to a later point in time with the push of a button for the well being of guests at a later hour as well.

+ POINTS

Save energy during longer absences
Integration of heating and ventilation in usage scenarios
Display of temperature and error status for up to eight heat generators
An overview of consumption and yield values
Integration into visualisations, e.g. Gira HomeServer
Recommended by Vaillant

New firmware, new possibilities

Version 2.1 for the SMART CONNECT KNX Vaillant available!

Even more diversity! With the new update V2.1 the SMART CONNECT KNX Vaillant supports also the system controller sensoCOMFORT /2. Together with the system controllers sensoCOMFORT or multiMATIC, the SMART CONNECT KNX Vaillant offers integration between the Vaillant system and KNX.

The device can be updated using the integrated function on the device web page.

Features

Control of operation mode and temperature setpoint values for up to three heating zones
Control of operation mode and temperature setpoint value for hot water supply
Control of ventilation system operation mode
System information like service mode, error messages, date and time, outside temperature and system status
Heating circuit status values: Pump status, flow setpoint temperature, flow temperature, minimum flow setpoint temperature for cooling mode, heating curve for each heating circuit
Hot water status values: Circulation pump status, charging pump/3-way valve status, hot water temperature

Display of temperature and error status for up to eight heat generators
Yield values of solar systems and heatpumps
Consumption values for hot water supply and heating (electricity and gas)
Handover protocol from installer to system integrator
Simple integration into KNX (can be completely configured via ETS)
Easy-to-understand structure in the ETS5 thanks to channels
Extensions via firmware updates

Technical data

(Gateway)
Rated voltage:	DC 24 V to 30 V
Power consumption:	1.2 W
IP communication:	Ethernet 10/100 BaseT
KNX communication:	KNX/TP, S-Mode
KNW medium:	TP1-256
Connections:	1x RJ45
	1x USB
	Connection and branching terminals for KNX and 24 V
Ambient temperature:	0°C to +45°C
Dimensions:	2 HP (DRA plus)

(eBUS Adapter)
Rated voltage:	Power supply via eBUS and USB
Power consumption:	0.1 W
Connections:	Mini USB B
	eBUS via 2pol. terminal screw
Ambient temperature:	0 °C bis +45 °C
Dimensions:	1 HP (DRA)

Note:
Power supply via external DC 24 V
Set consists of eBUS adapter and gateway
Only for systems with the system controllers sensoCOMFORT or multiMATIC
For ETS5 or higher

Communication and Installation

Downloads

Note: You install the update for the system controllers on the device website of the SMART CONNECT KNX Vaillant under System > Firmware update.

Installation Guide

Product Manual

Status 23.11.2022

ETS Product database entry

Version 2.0

Firmware SMART CONNECT KNX Vaillant

Installation file version 2.1.50

Update system controllers sensoCOMFORT R3 for SMART CONNECT KNX Vaillant

Version 2 – Note: You install the update for the system controllers on the device website of the SMART CONNECT KNX Vaillant under System > Firmware update.

Installation Guide eBus Adapter

Handover Protocol

Tender text (.docx)

Tender text (.txt)

Data Sheet

Product brochure

Ordering info

SMART CONNECT KNX Vaillant
Item number: S-0001-006

Product assortment

Smart solutions from ise

Catalogue

Price list

Our new products

Sources of supply

ise Individuelle Software und Elektronik GmbH
Osterstraße 15
D-26122 Oldenburg

Tel. +49 441 68006-11
Fax +49 441 68006-15

www.ise.de
sales@ise.de

Sources of supply

1. The scope of functions may vary depending on the heating installation. Your installer will be happy to advise you on the possibilities.
