+ POINTS
- Saving energy during longer absences
- Integration of panel heating into usage scenarios
- Integration into visualisations, e.g. Gira HomeServer, Gira X1
- Absence mode and scheduled return can be configured
- Hydraulic balancing takes place automatically and permanently
- Switching between heating and cooling mode
New firmware, new possibilities
Version 2.0.1445 for SMART CONNECT KNX viega available!
With Version 2.0.1445 the switching between heating and cooling mode is possible.
You can update the gateway free of charge using the integrated function on the device web page.
- Support of 5 base stations each with up to 8 room temperature controllers and 12 outlets
- Room temperature control
- Switching between heating and cooling mode
- Power level control
- Absence control
- System information such as error messages, actual temperature or updates from viega

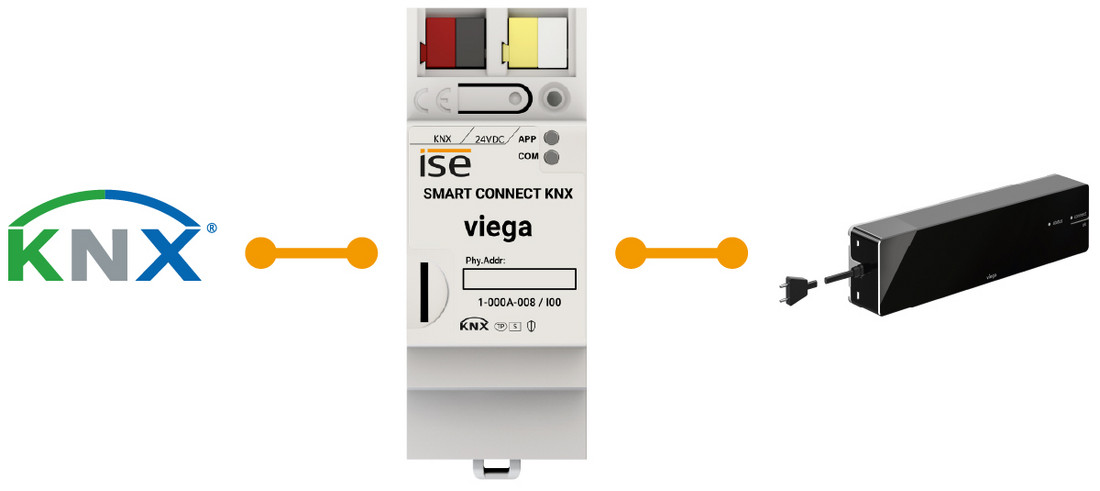

- Simple integration in KNX (can be completely configured via ETS)
- Extensions via firmware updates
Ordering info
SMART CONNECT KNX viega
Item number: 1-000A-008
Sources of supply
ise Individuelle Software und Elektronik GmbH
Osterstraße 15
D-26122 Oldenburg
Tel. +49 441 68006-11
Fax +49 441 68006-15
1. If you wish to use the SMART CONNECT KNX viega, you must use Fonterra Smart Control for Fonterra surface temperature regulating systems in Version 3 or higher with firmware version 2.8-4.43 or higher, supplied by Viega GmbH & Co. KG.
