Charge clever with e-charge

SMART CONNECT KNX e-charge

IMPORTANT INFORMATION:
The SMART CONNECT KNX e-charge II replaces with extended functionality and dynamic load management the predecessor SMART CONNECT KNX e-charge.
The SMART CONNECT KNX e-charge is no longer offered in the product range.

Up to five charging stations

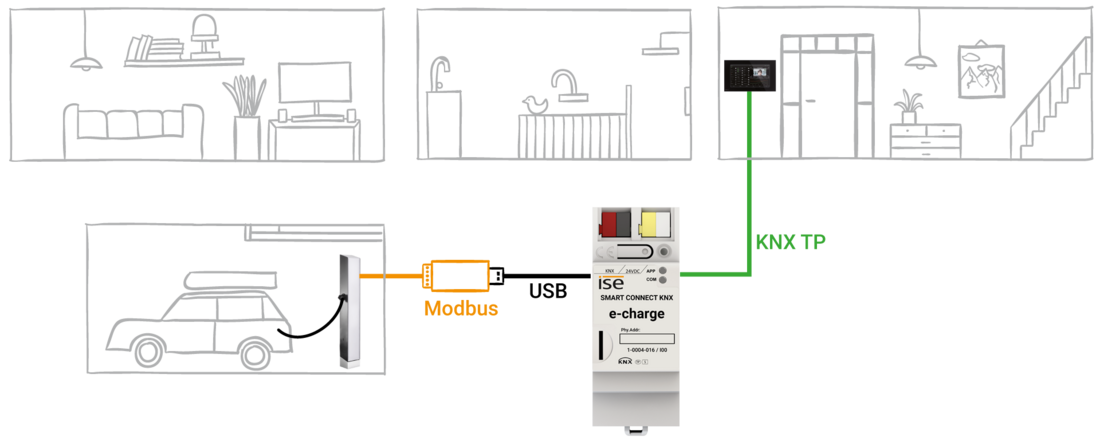

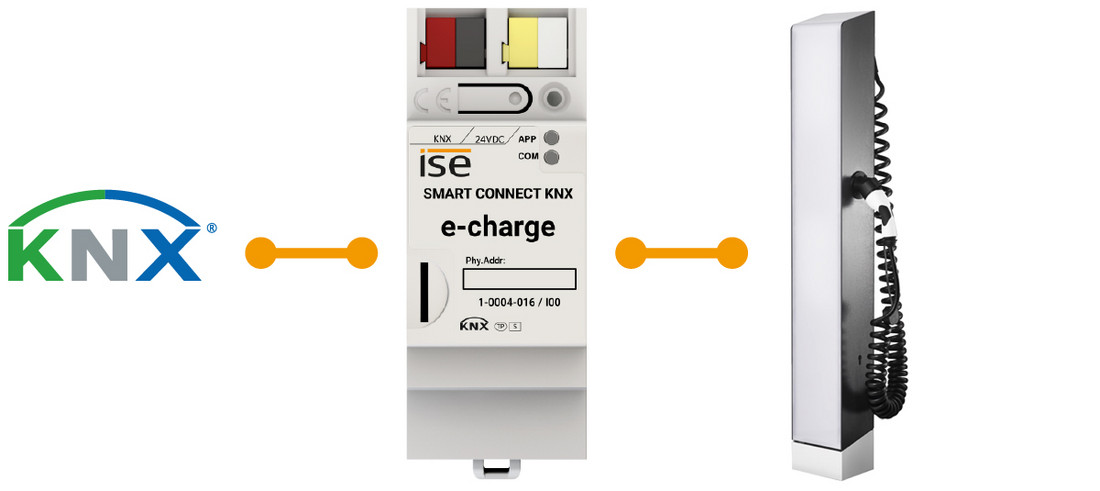

for electric vehicles can be integrated with the SMART CONNECT KNX e-charge into your KNX.1

Connect your charge points for example with a “ready to charge/occupied” indicator

or display in your building, if a vehicle is still charging. Set your starting current and maximum current in your central control.

Ecological, economical or individual charging

Control charging via KNX! Use advantageous electricity pricing and electricity generated by your renewable energy source to charge your vehicle when it is convenient for you. Or individually by pressing a button.

Set the current

Your charging station can adapt to the needs of your electric grid. Now you can also operate and monitor it via KNX. For example: While your washing machine is washing, the current for your vehicle is being throttled – comfortably from within your house.

Informed charging

You want to know if and how many cars are connected or being charged at your charging stations, but you don’t want to go to your garage? Be informed comfortably via KNX – where you want to and the way you want to!

+ POINTS

Up to five charge points connected to KNX
Monitor and control the charging current via KNX
Enable or disable charge points via KNX
Connect via Modbus adapter

Features

Integrate up to 5 charging stations into the KNX system
Status request of the maximum permitted current and the starting current
Setting the charge current between 6 and 32 Ampere
Status request of the availability of the charging station (free, occupied/not charging, occupied/charging, occupied/charging/ventilation needed)

Enable or disable charging stations individually
Show operation readiness of the charging stations
Read out error messages via error code display
Extensions via firmware updates

Technical data

Rated voltage:	DC 24 V to 30 V
Power consumption:	3 W
IP communication:	Ethernet 10/100 BaseT
KNX communication:	KNX/TP, S-Mode
KNX medium:	TP1-256

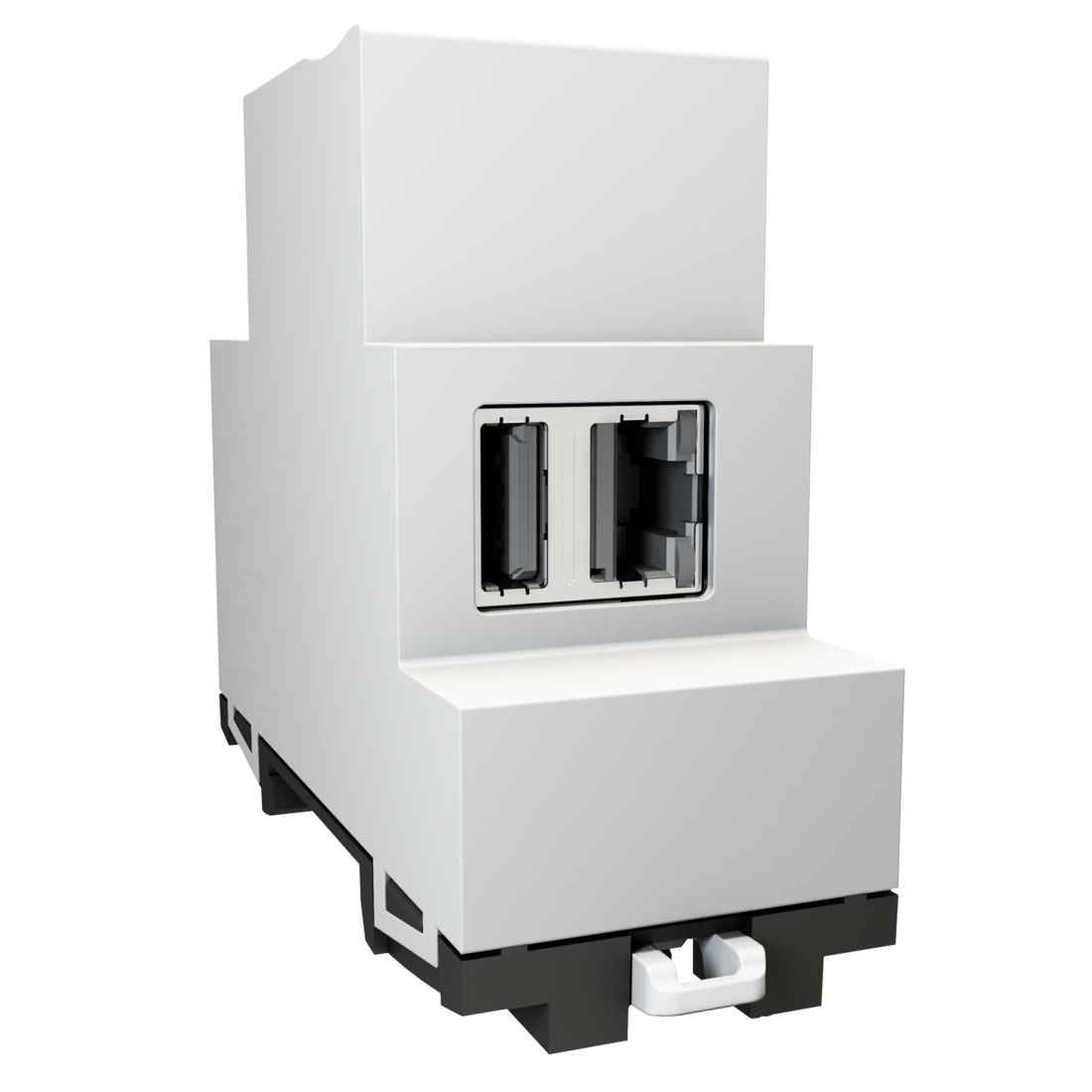

Connections:	1x RJ45
	1x USB
	Connection and branching terminals for KNX and 24 V
Ambient temperature:	0°C to +45°C
Dimensions:	2 HP (DRA plus)

Note:
Supply via external DC 24 V
The connection to the charging stations is made via a Modbus adapter (not included in the scope of delivery)
For ETS5 or higher

Communication and Installation

Downloads

Installation Guide

Product Manual

Appendix Product Manual for e-charge

ETS Product database entry

Version 1.0

Configuration for the ETS Product database entry

XML-File

Tender text (.docx)

Tender text (.txt)

Ordering info

SMART CONNECT KNX e-charge
Item number: 1-0004-016

Product assortment

Smart solutions from ise

Catalogue

Price list

Our new products

Sources of supply

ise Individuelle Software und Elektronik GmbH
Osterstraße 15
D-26122 Oldenburg

Tel. +49 441 68006-11
Fax +49 441 68006-15

www.ise.de
sales@ise.de

Sources of supply

Manufacturer information

IGT GmbH
Göttinger Straße 25, 34123 Kassel
Tel. 0151 24088163
www.igt-kassel.de
info@igt-kassel.de

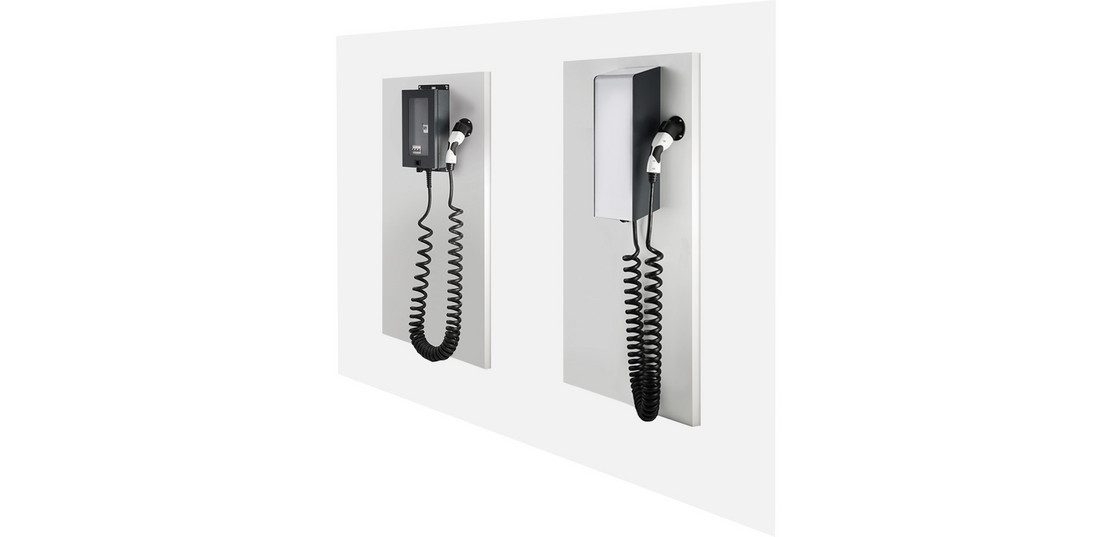

1. Our SMART CONNECT KNX e-charge works best with compatible charge points supplied by our partner IGT.
