+ POINTS
- Save energy during longer absences
- Integration of heating in usage scenarios
- Display of temperature and error status for up to eight heat generators
- An overview of consumption and yield values
- Integration into visualisations, e.g. Gira HomeServer
Features
- Control of operation mode and temperature setpoint values for up to three heating zones
- Control of operation mode and temperature setpoint value for hot water supply
- System information like service mode, error messages, date and time, outside temperature and system status
- Heating circuit status values: Pump status, flow setpoint temperature, flow temperature, minimum flow setpoint temperature for cooling mode, heating curve for each heating circuit
- Hot water status values: Circulation pump status, charging pump/3-way valve status, hot water temperature
- Display of temperature and error status for up to eight heat generators
- Yield values of solar systems and heatpumps
- Consumption values for hot water supply and heating (electricity and gas)
- Handover protocol from installer to system integrator

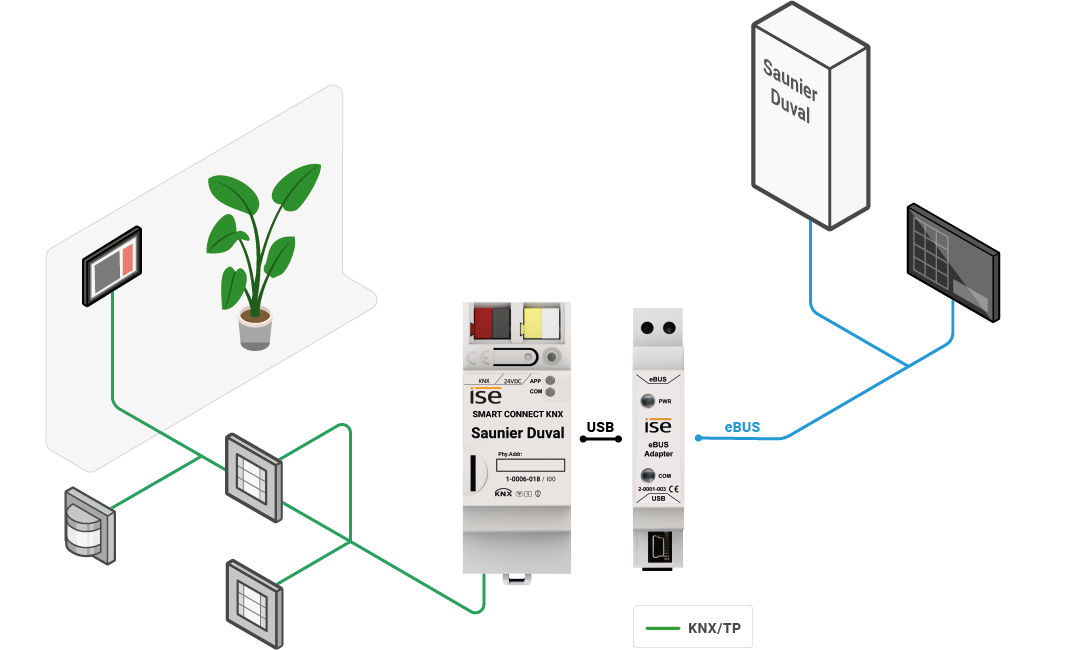

- Simple integration into KNX (can be completely configured via ETS)
- Easy-to-understand structure in the ETS5 thanks to channels

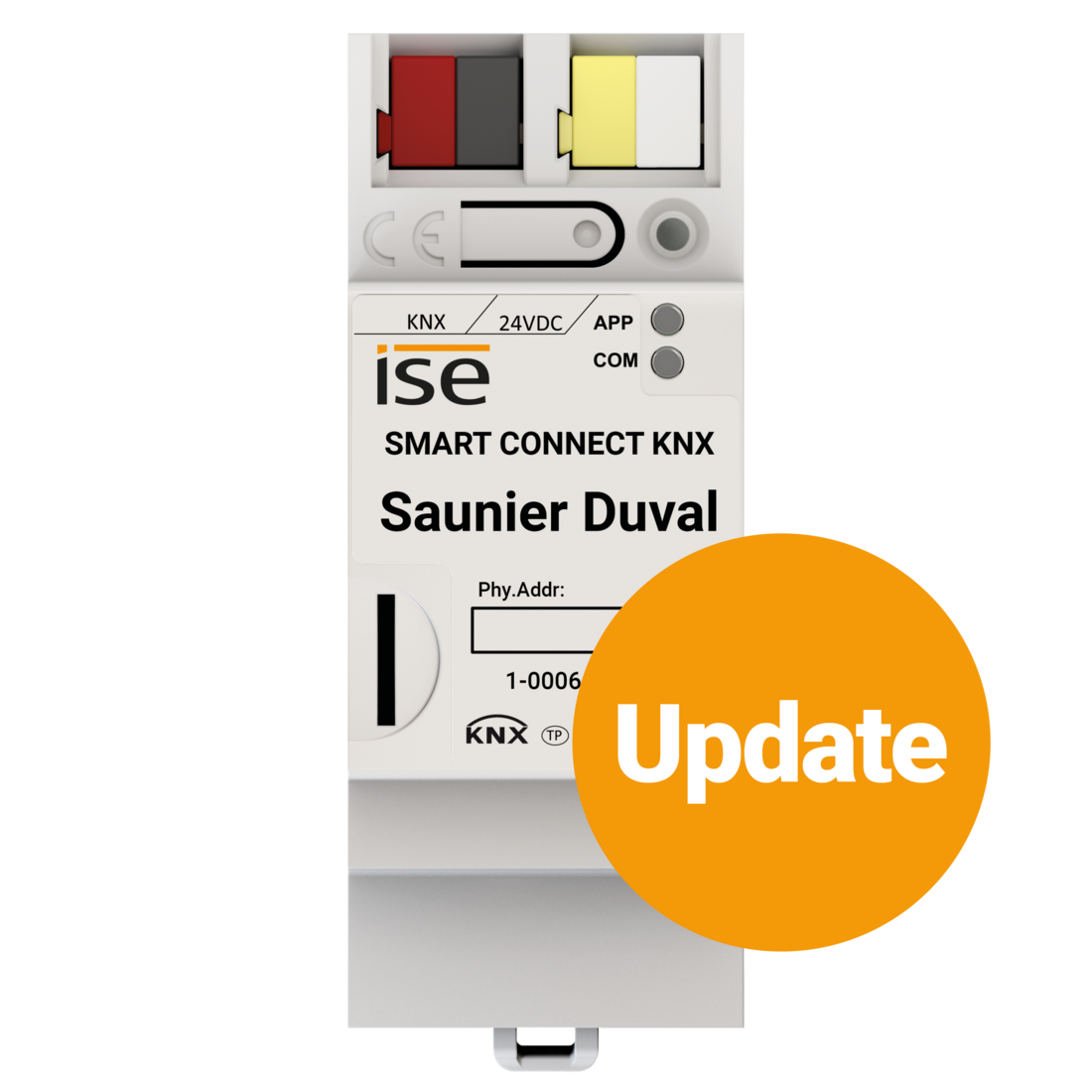

- Extensions via firmware updates
Technical data
Communication and Installation
Downloads
Ordering info

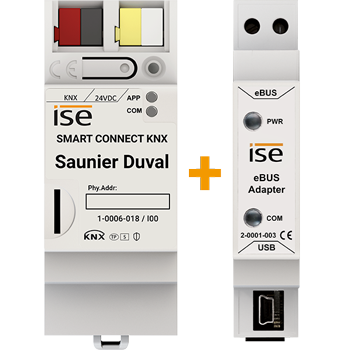

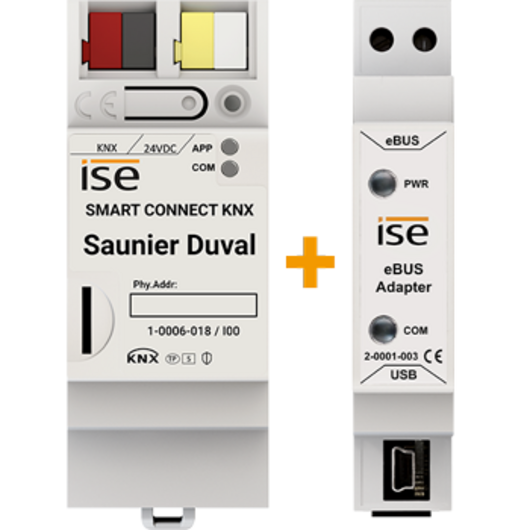

SMART CONNECT KNX Saunier Duval
Item number: S-0001-017
