The next generation KNX radio

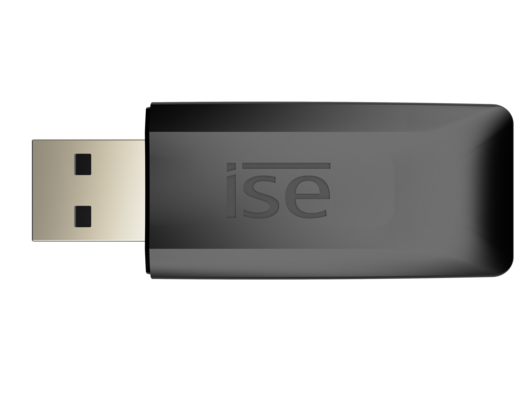

KNX RF Multi USB interface

KNX access via radio – whether Ready or Multi

Access the KNX installation conveniently and wirelessly. Whether for commissioning or error diagnosis, the USB interface and the ETS can be used to program, install or service an RF installation.

+ POINTS

Support of KNX RF Multi
Support of KNX RF Ready
Wireless communication between PC and KNX RF
Commissioning and troubleshooting via ETS6 (KNX RF Multi) or ETS5 (only KNX RF Ready)
Support of long frames
Enables commissioning of RF Secure devices
No additional USB driver required

Technical data

Rated voltage:	DC 5 V
Current consumption:	25 mA
KNX communication:	RF1.R (Ready) 868.3 MHz
	RF1.M (Multi) 868.3 MHz, 868.95 MHz, 869.85 MHz, 869.525 MHz
RF transmission power:	max. 25 mW
Transmission range in free field:	100 m (typical)
USB port:	2.0 type A
Ambient temperature:	-10 °C to +55 °C
Dimensions:	21 mm x 59 mm x 7.5 mm

Note:
For ETS6 (KNX RF Multi) or
ETS5 (only KNX RF Ready)

Downloads

Ordering info

KNX RF Multi USB interface
Item number: Nr. 3-0003-006
