Everything's possible with the Programmable

SMART CONNECT KNX Programmable

From electricity meter to heating

With the SMART CONNECT KNX Programmable, third-party devices can be connected to the KNX bus in a simple and reliable way. This enables individualised connection logic to be developed in just a few days. The barrier to the world of building automation has never been this low.

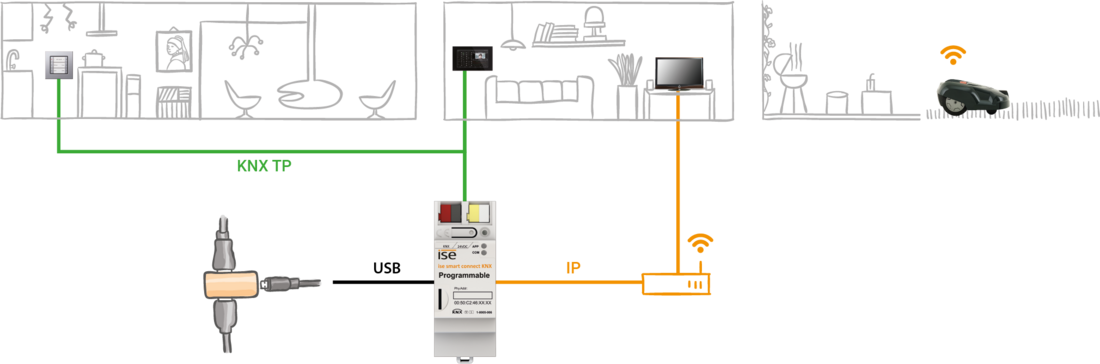

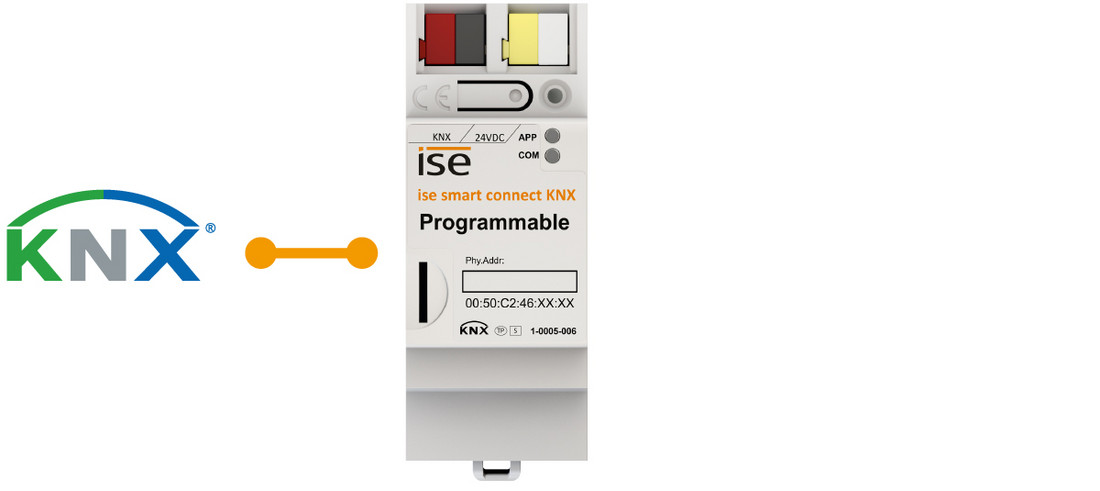

infographic SMART CONNECT KNX Programmable

Communication with the third-party system via IP/USB interfaces

The Programmable is the first successful affordable alternative to costly device development. Not only is the low price of the device itself impressive, but its further development is affordable as well. Either C# or VB.Net can be used to implement the application. This means that widely used and free programming tools can readily be used.

A pleasant evening at the push of a button

Just a push of a button is all it will take to dim the lights or start the multimedia system in future. This adapter enables more devices than ever before to be integrated into the KNX system.

Integrate third-party systems

Using IP and USB adapters (FTDI), such as Modbus, 1Wire, RS232, RS485, HDMI (CEC), IR, CAN and other adapters, third-party systems can be readily integrated.

+ POINTS

Simple integration of third-party systems into KNX
Ready-certified KNX device
Connect third-party systems via IP or USB
Execution of .NET application (C# or VB.Net)
Comprehensive SDK
Protection of own application against unintentional duplication

Features

Programming of the application in C# or VB.Net
Up to 64 KNX communication objects (variable bit length)
Version 1-0004-005: 1x IP and 1x USB connection
Version 1-0005-006: 2x IP connection

Ready-certified KNX device 1(can be completely configured via ETS)
Extensions via firmware updates

Technical data

Rated voltage:	DC 24 V to 30 V
Power consumption:	2 W (Ethernet version: 2x RJ45)
	3 W (USB version: RJ45 + USB with 300 mA)
IP communication:	Ethernet 10/100 BaseT
KNX communication:	KNX/TP, S-Mode
KNX medium:	TP1-256
Connections:	2x RJ45 with integrated switch (Ethernet version)
	RJ45 + USB (USB version)
	Connection and branching terminals for KNX and 24 V
Ambient temperature:	0°C to +45°C
Dimensions:	2 HP (DRA plus)

Note:
Power supply via external DC 24 V
For ETS5 or higher

Communication and Installation

Downloads

Installation Guide IP

Installation Guide USB

Product Manual

Developers Guide

ETS Product database entry

Version 1.0

Software Development Kit (SDK)

Version 1.10.3298.16513

Tender text (.docx)

USB

Tender text (.txt)

USB

Data Sheet

Ordering info

Item number 2x RJ45: 1-0005-006
Item number 1x USB, 1x RJ45: 1-0004-005

Product assortment

Smart solutions from ise

Catalogue

Price list

Our new products

Sources of supply

ise Individuelle Software und Elektronik GmbH
Osterstraße 15
D-26122 Oldenburg

Tel. +49 441 68006-11
Fax +49 441 68006-15

www.ise.de
sales@ise.de

Sources of supply

Solution Partner

ise solution partners develop custom-tailored and individual solutions based on the SMART CONNECT KNX Programmable:

Schanzenstraße 40, 40549 Düsseldorf
Tel. +49 211 415596-0, Fax +49 211 415596-11
www.netyard.de
igt@netyard.de

Hindenburgdamm 68, 12203 Berlin
Tel. +49 30 40203090-0, Fax +49 30 40203090-9
www.smart-solutions.de
info@smart-solutions.de

1. The KNX certification for the SMART CONNECT KNX Programmable is limited to the interworking ability with KNX products from other manufacturers.
